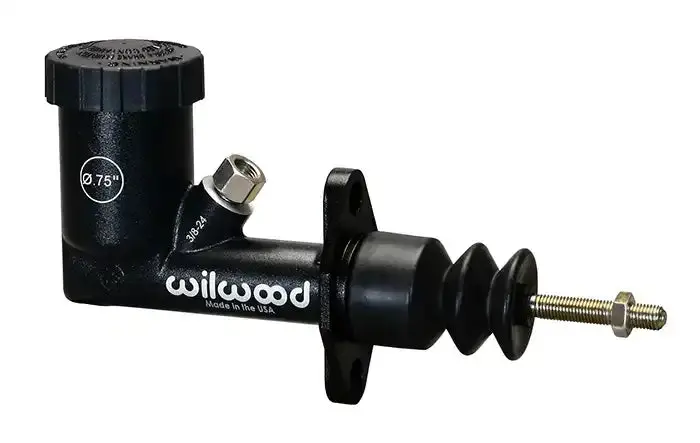

Gs Integral Master Cylinder – 0.750-Inch Bore Hydraulic Brake Master Cylinder

Description

Attributes

• Condition: New
• Bore Diameter: 3/4 Inch
• Port Size: 3/8 Inch-24 Inch
• Finish: Electro Coated
• Color: Black
• Material: Aluminum
• Includes Reservoir: Yes

Product Description

Wilwood’s new GS Compact Integral Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Integral cylinders feature a positive seal internal bellows cap. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release. Wilwood’s new 3/4 Inch bore GS Compact Integral Master Cylinders are an all new re-buildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Integral cylinders feature a positive seal internal bellows cap. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.

Features & Benefits

• Newly Tooled High Pressure Die-Cast Aluminum Bodies With Protective E-Coat Finish
• Newly Designed Internal Piston And Return Spring Assembly Assures A Quick And Positive Release With Extended Service Life
• Fully Rebuildable Design
• High Displacement Capacity With Full 1-1/4 Inch Stroke In All Models
• No Supplier Warranty
